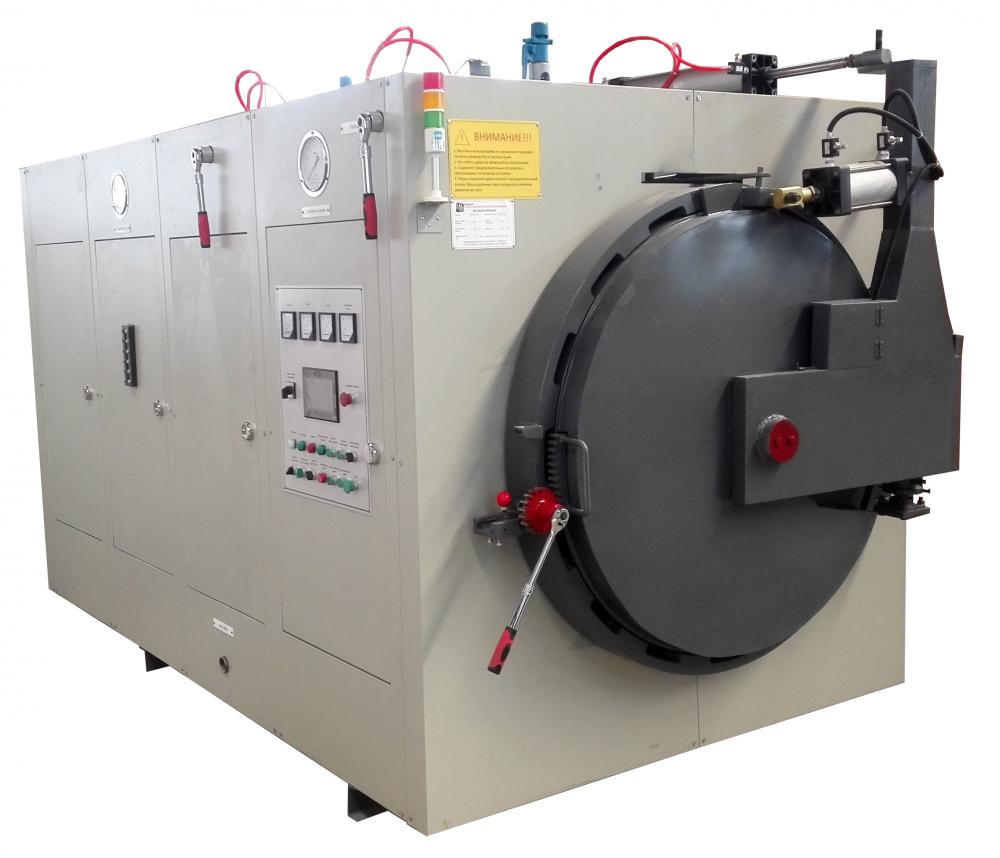

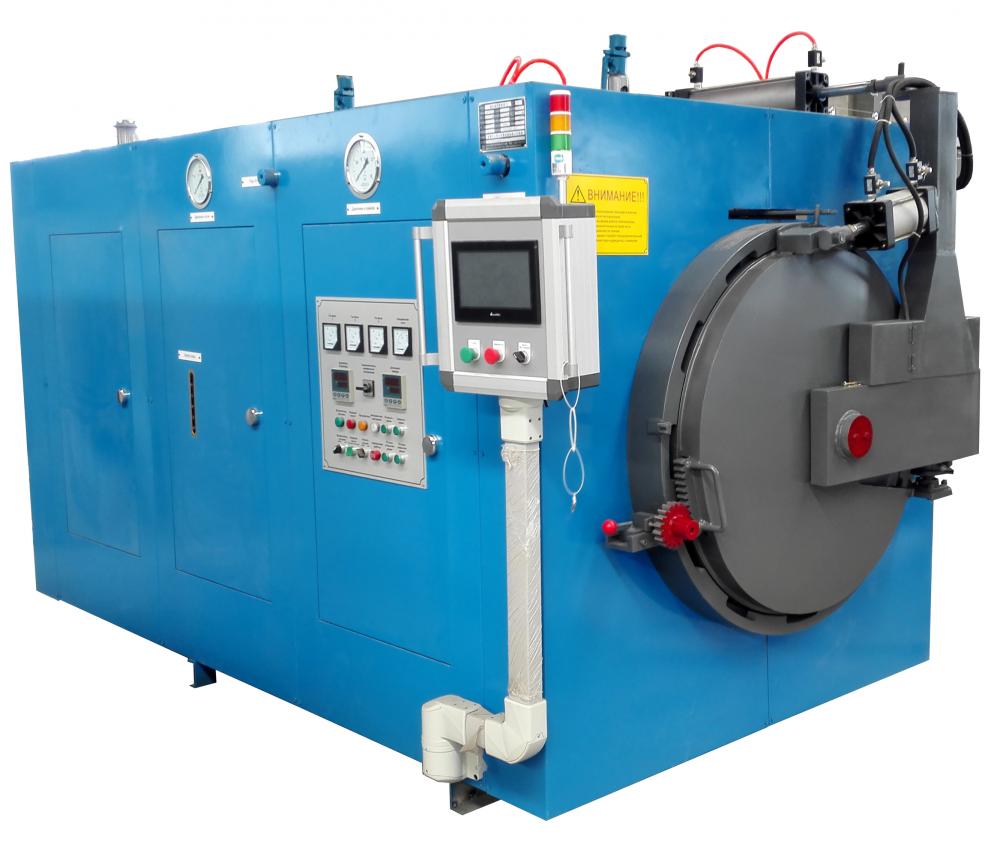

automatic dewaxing machine 1000mm

automatic dewaxing machine 1000mm 1. inner diameter of dewaxing kettle: φ 1000× 1100mm; 2. pressure regulating range: 0.0 ～ 0.9mpa; 3. when the dewaxing chamber is at 0.6MPa, the pressure balance time is less than 5S; 4. the sealing ring adopts U-shaped structure; Heat preservation treatment outside the kettle door to prevent scalding; 5. the touch screen +plc intelligent control system is adopted, and the kettle door is automatically closed, locked, automatically air inlet, exhaust, wax discharge, locked and automatically opened; Greatly reduce energy consumption and customer investment; 6. Schneider, PLC, Mitsubishi, and Yadeke are used as contactors and relays; 7. pressure and temperature dual protection control, mechanical safety interlock and interlock of charging valve and kettle door; 8. thick wall heating pipe with better quality is adopted to increase its service life; 9. the working parameters are displayed and set on the touch screen, and the process parameters…
