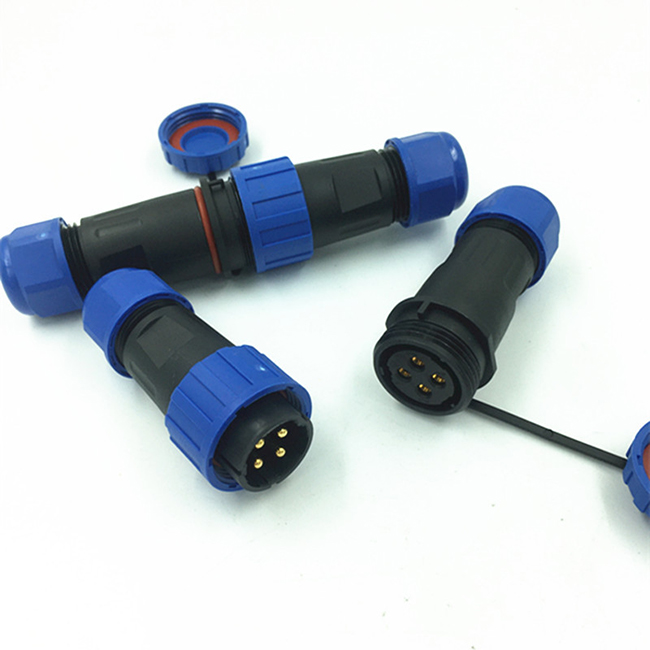

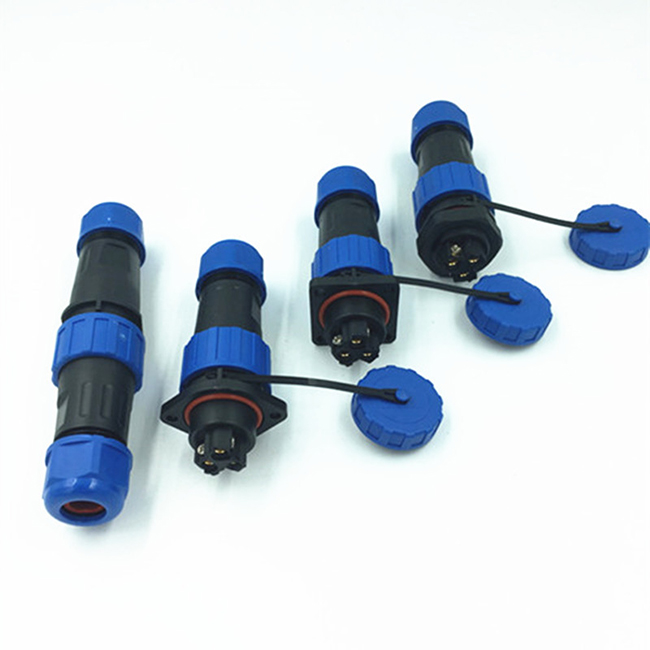

LD Series Aviation Plug and Socket

LD Series Aviation Plug and Socket 1. Waterproof rating: IP68 2. Multi-core type: 2, 3, 4 cores. 3. Working temperature: -25℃～110℃ 4. Wiring method: screw crimping 5. Rated current: 25A 6. Rated voltage: 250V 7. Withstand voltage: 1500V 8. Applicable cable specification: 0.2-3mm (single core diameter) 9. The shell material is PA66 nylon. Gold-plated brass core 10. Frequency of plugging and unplugging: >500 times Main features: 1. Simple screw nut rotation fixation. 2. The cable core wire is connected to the gold-plated metal copper terminal. 3. ROHS certified environmental protection materials, adapt to various high and low temperature conditions. 4. Moderate size; 5. Assembly and insertion, worry-free disassembly, easy replacement, and solid terminals! 6. Using super-large terminals, suitable for all kinds of automated high-current equipment.
